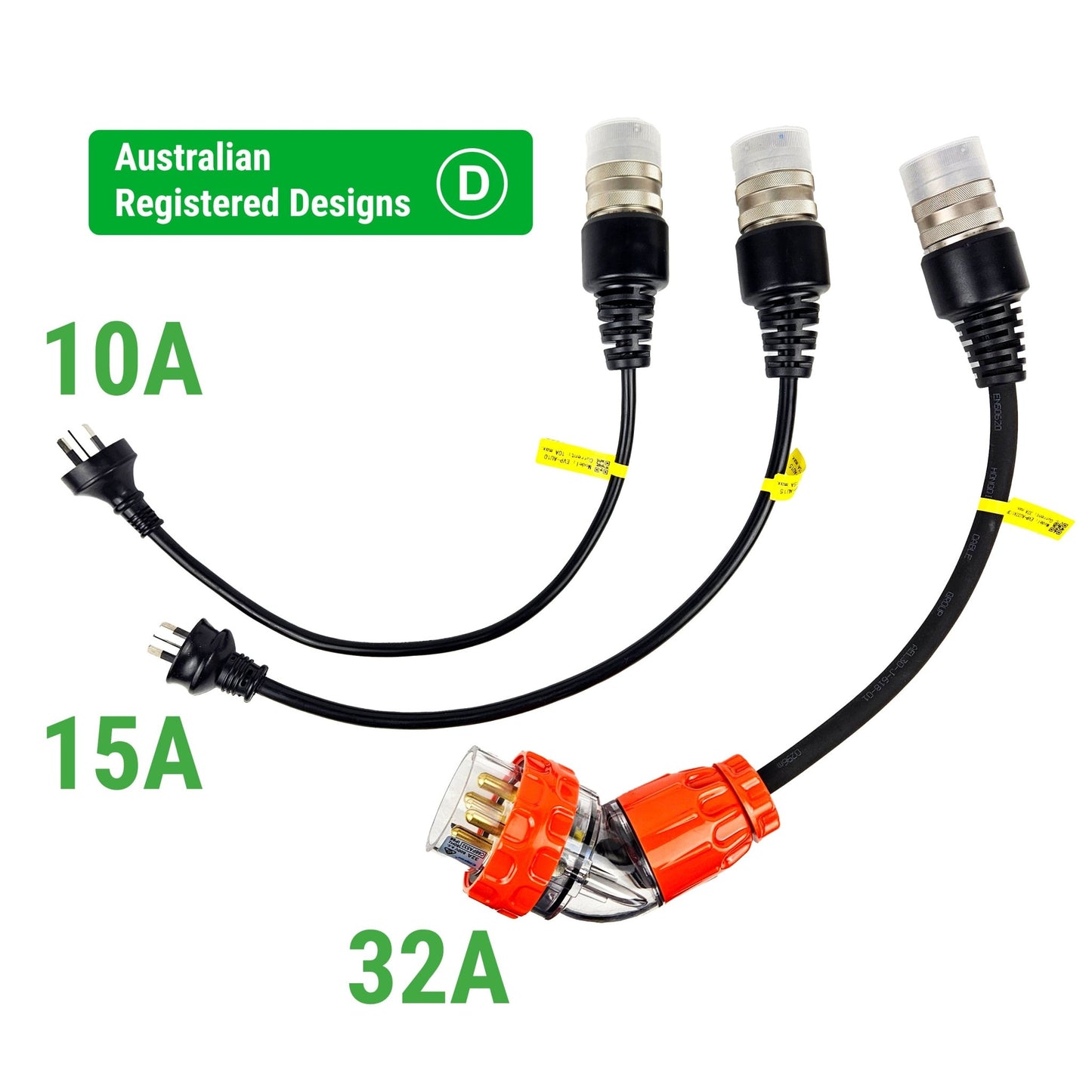

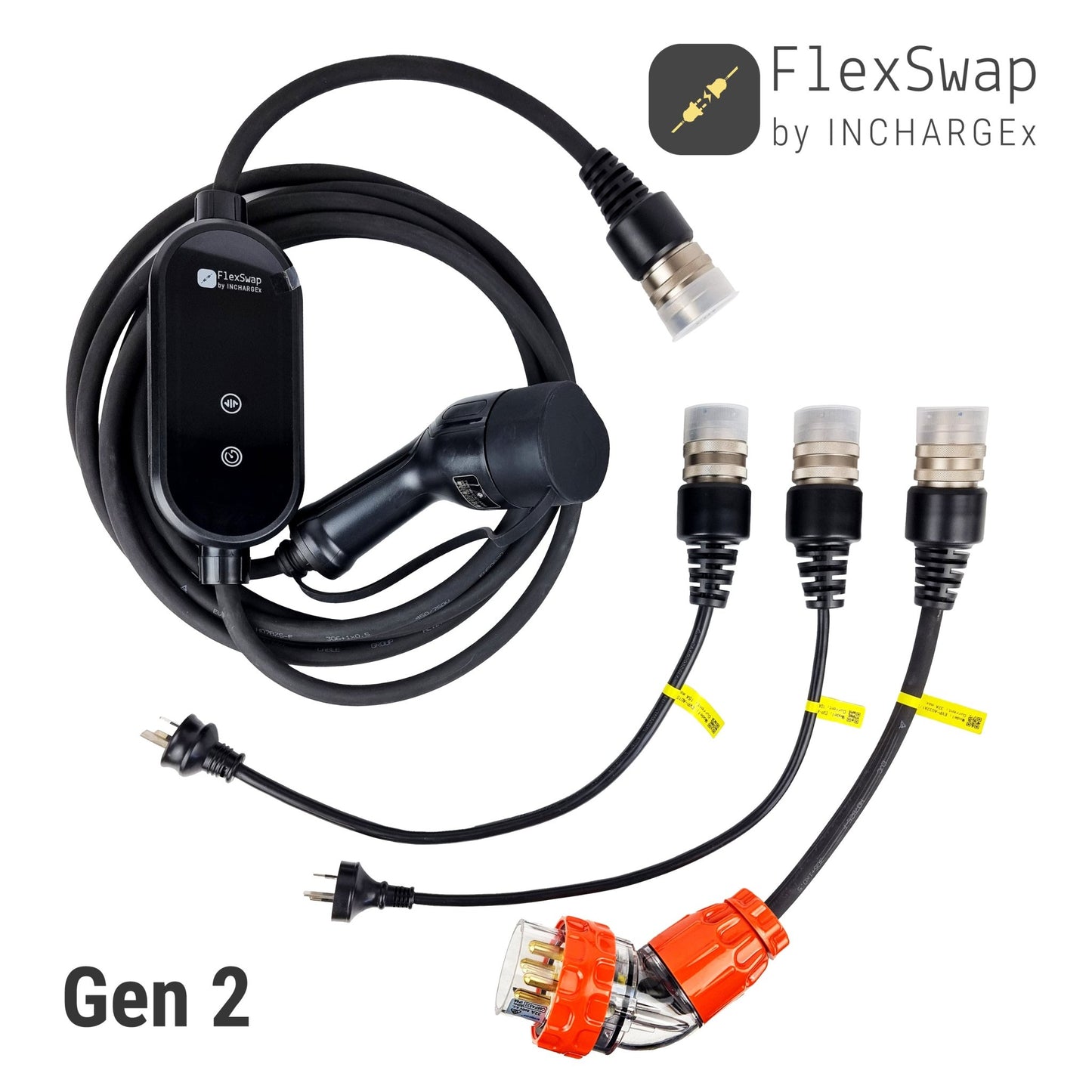

✅ Upgraded Generation 2 FlexSwap Charger Kit with 3 Interchangeable Tails for versatility: Comes equipped with three swappable tails to cater to various charging needs. Automatic current setting detection. Total length is 5.5 metres end to end including tails:
-

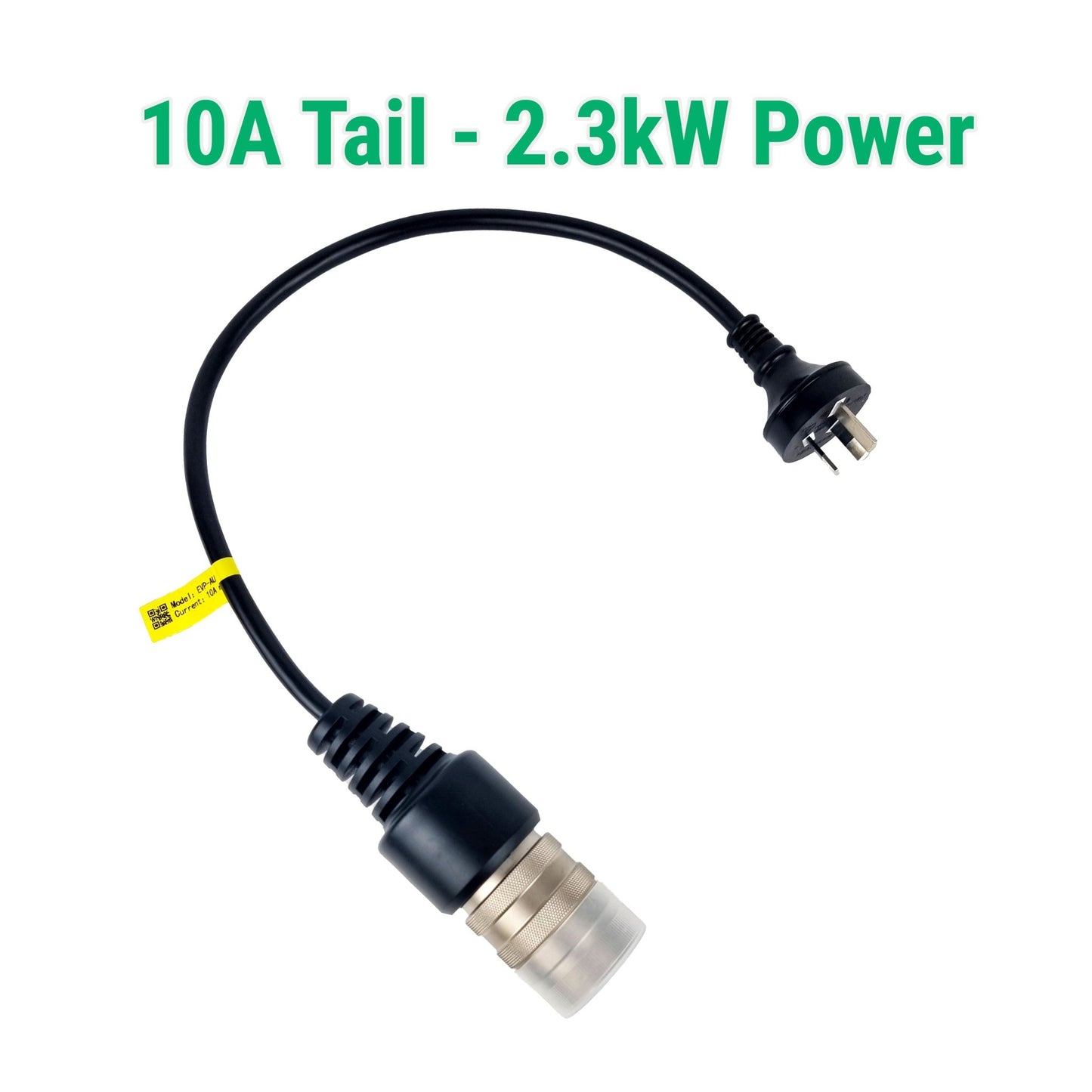

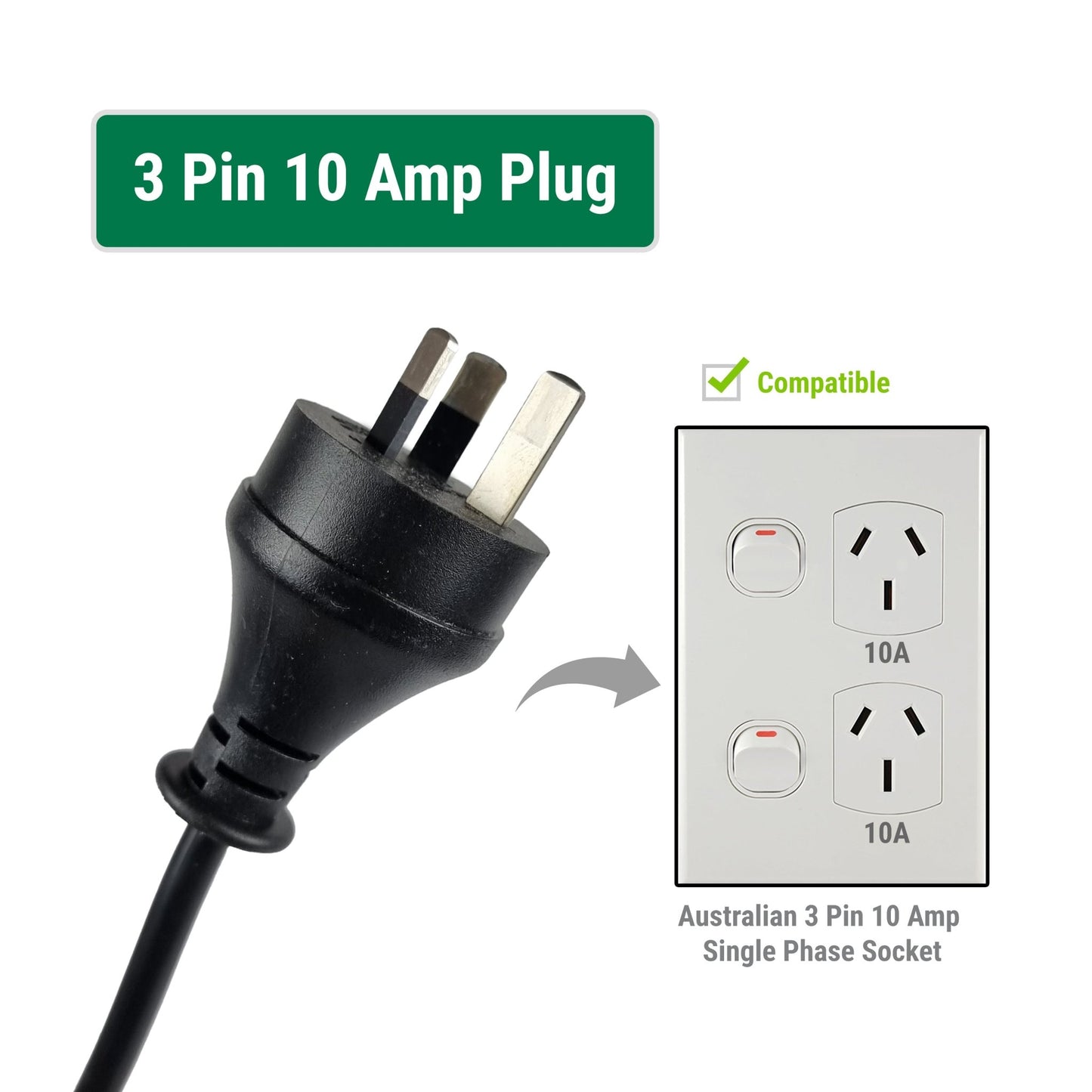

10A tail offering 2kW of charging power (1 tail)
-

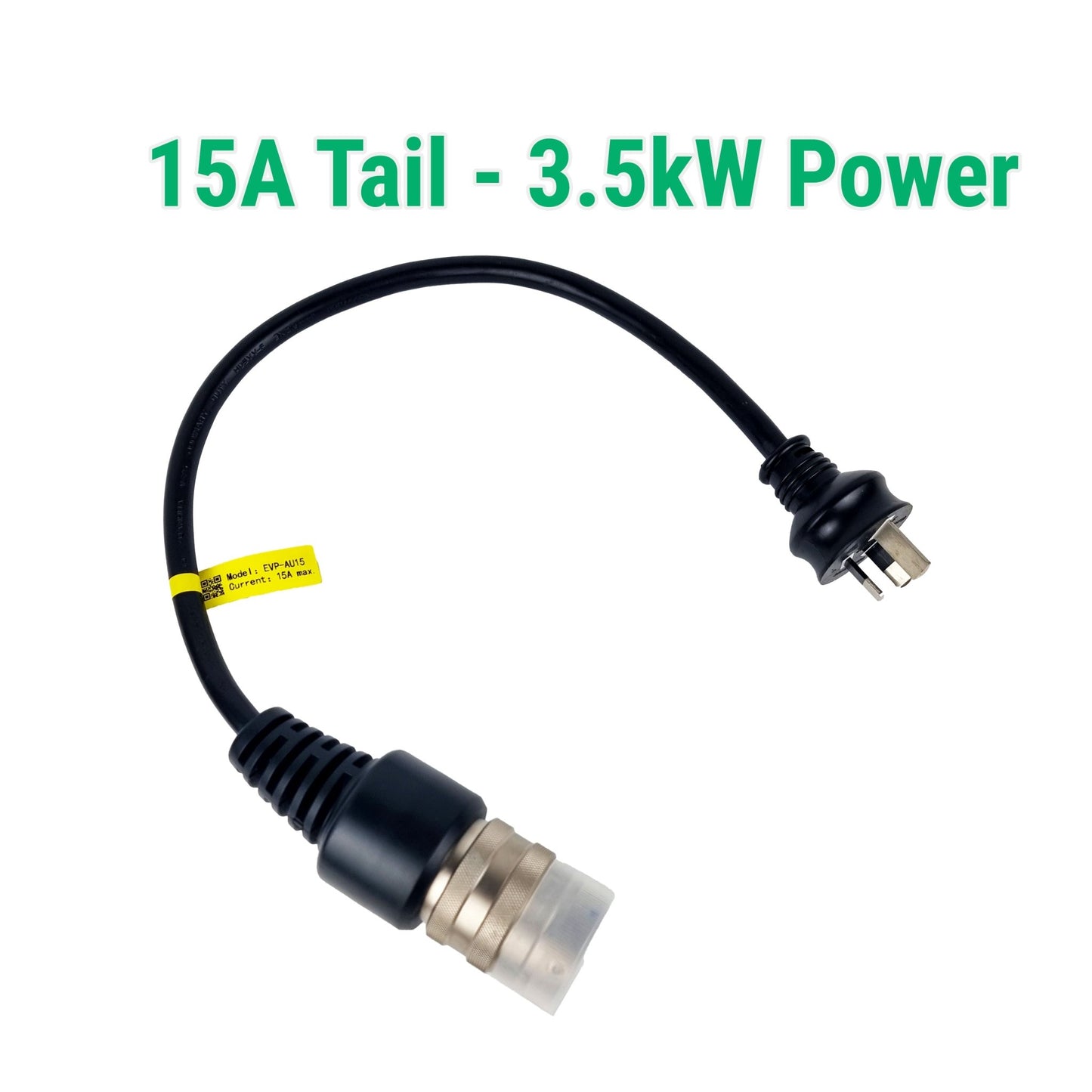

15A tail delivering 3.5 kW of charging power (1 tail)
-

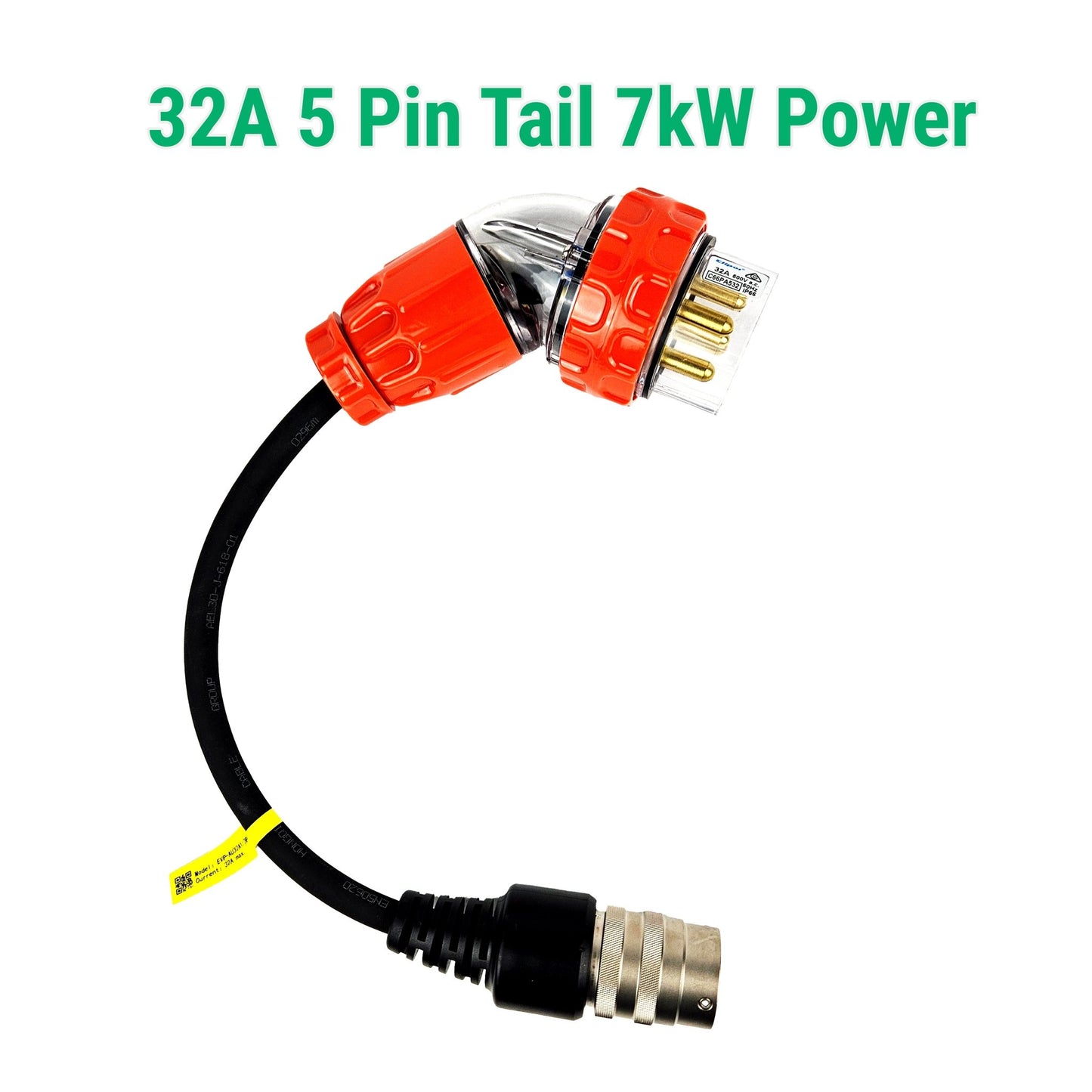

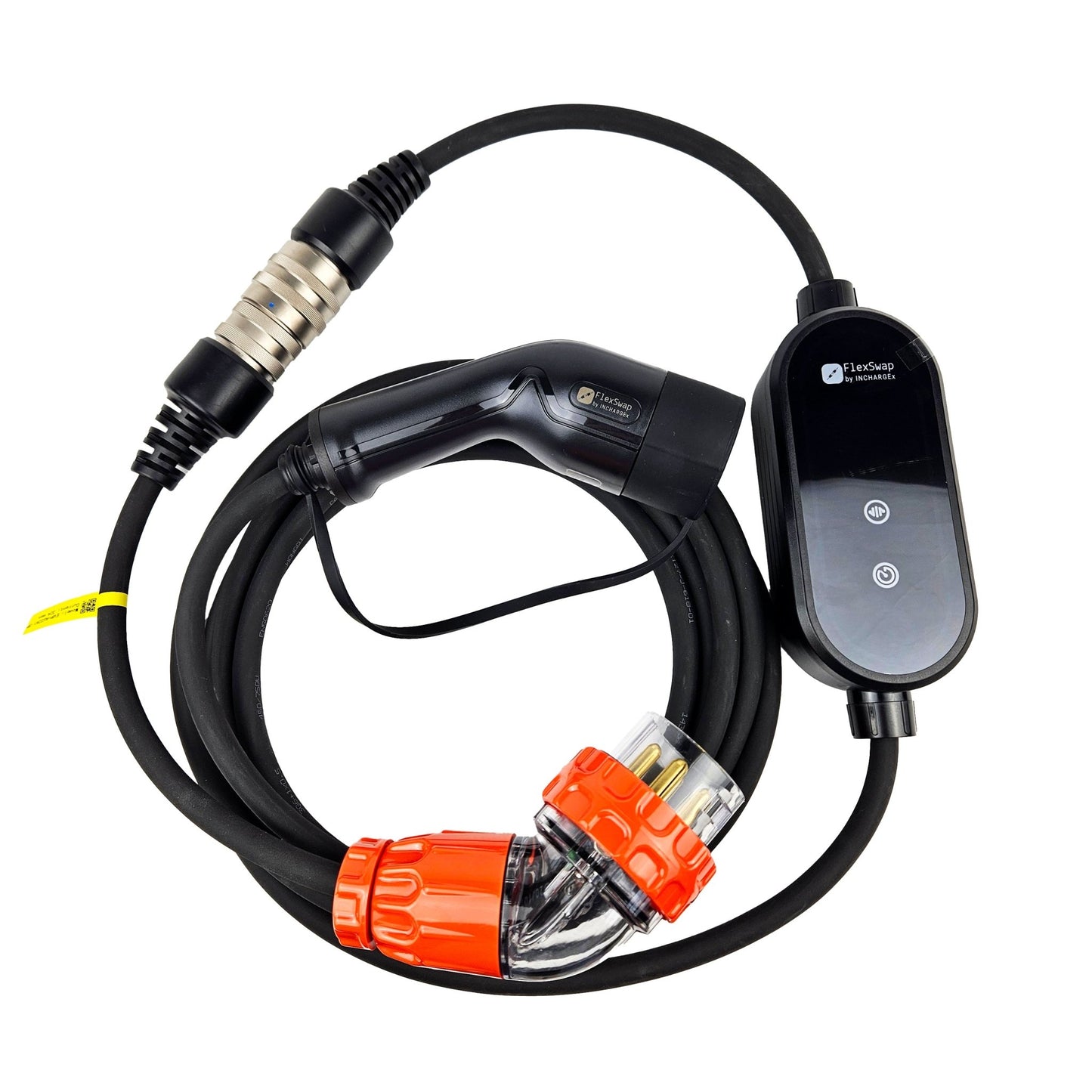

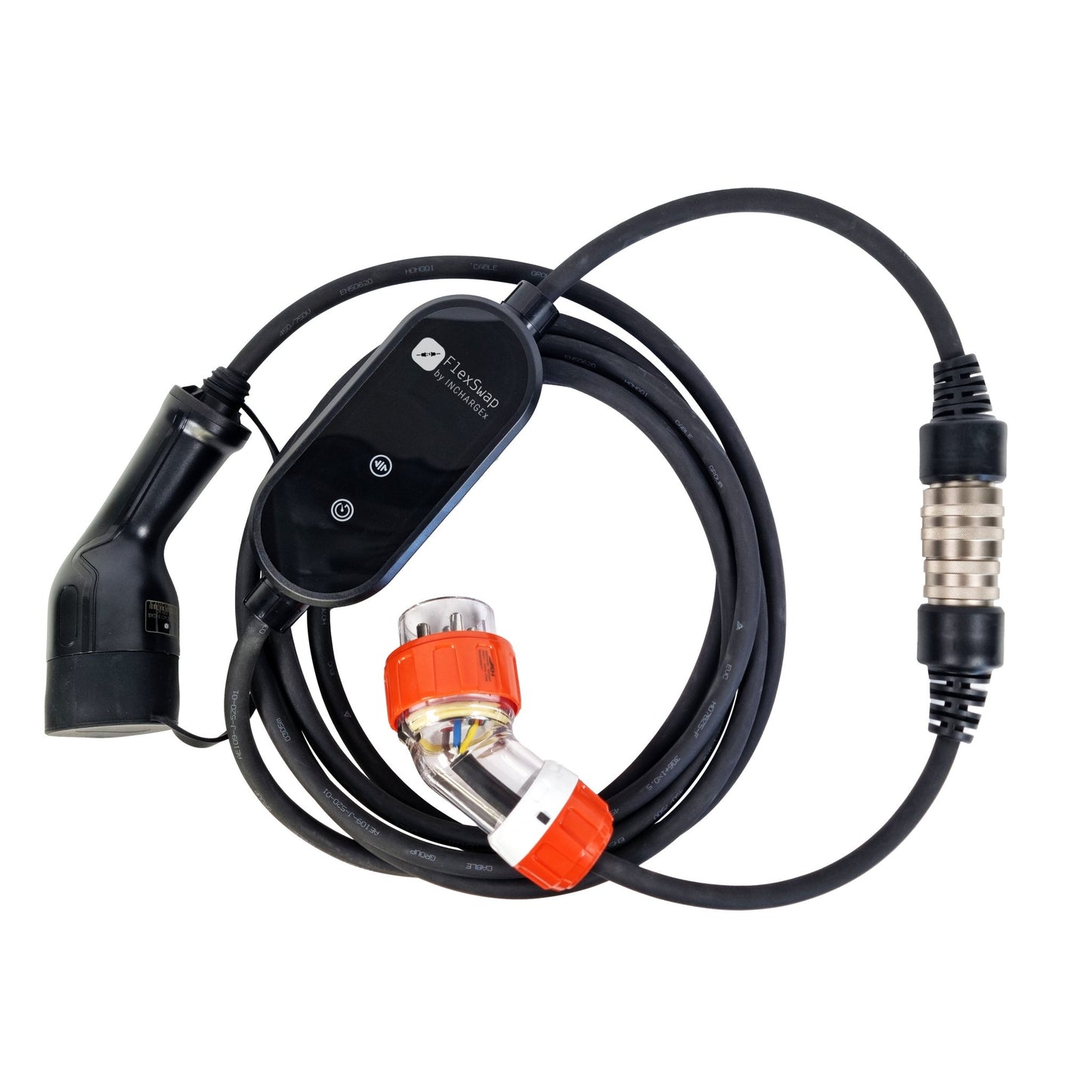

32A 5-pin single-phase tail providing a robust 32A 7kW charging capacity (1 tail). We have 2 appearances of the same 32A 5pin plug, identical functionality. Item you receive depends on our current shipment of plugs. No selection of appearance is available at this time.
✅ Improved features with Australian Registered Design injection moulded, stainless steel connector with push-click locking mechanism. Simply pushing the charger connector and the tail connector together to securely lock. Improved construction and appearance.

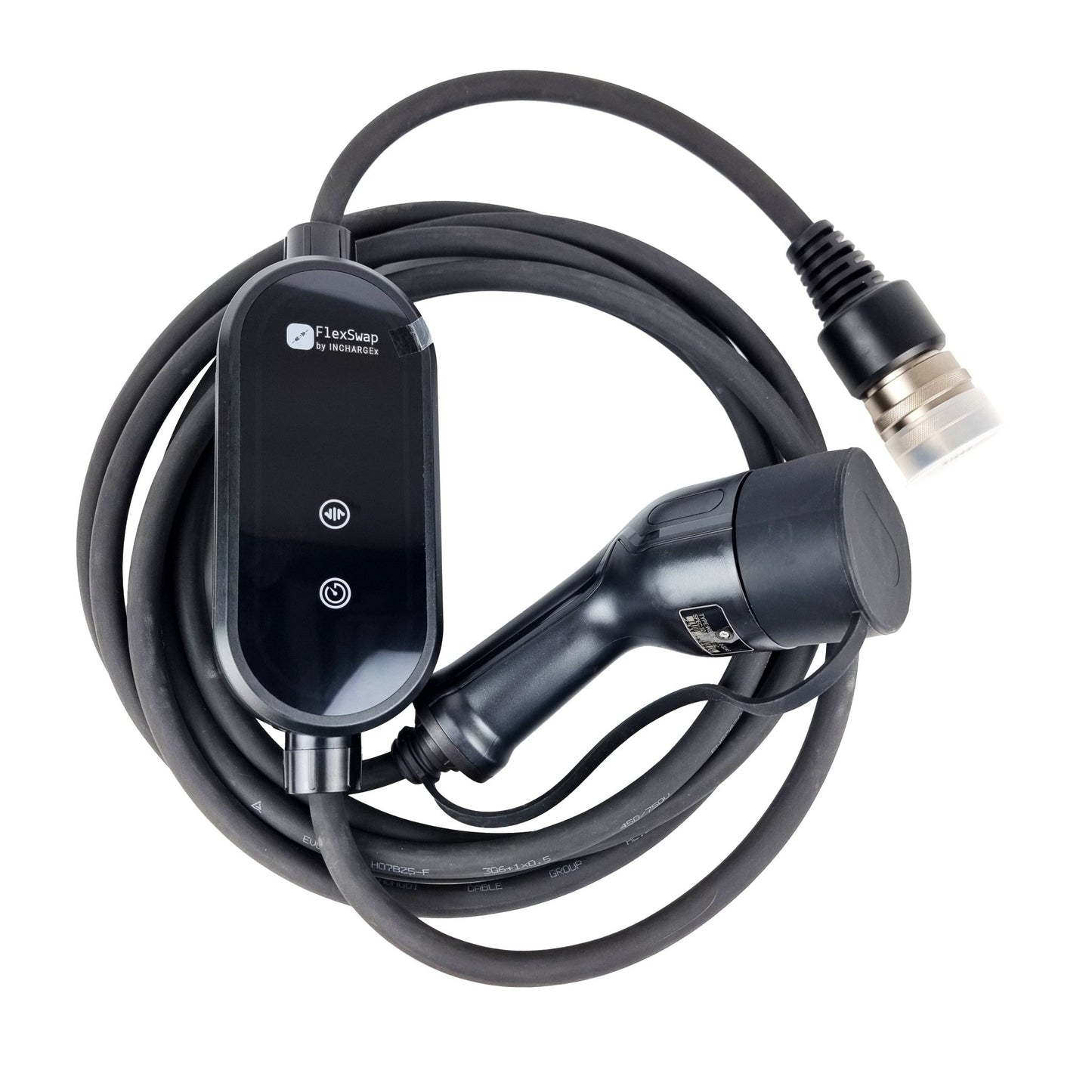

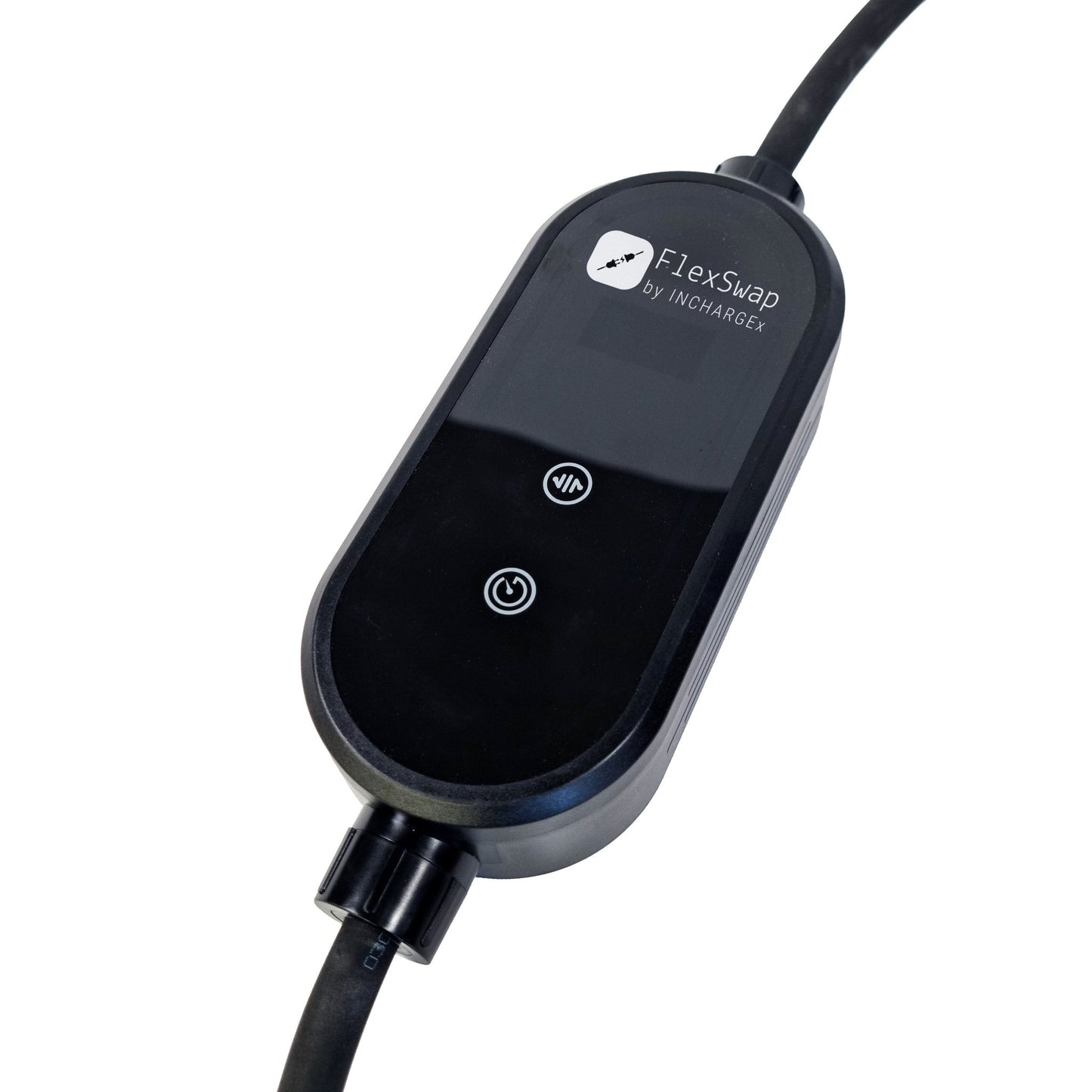

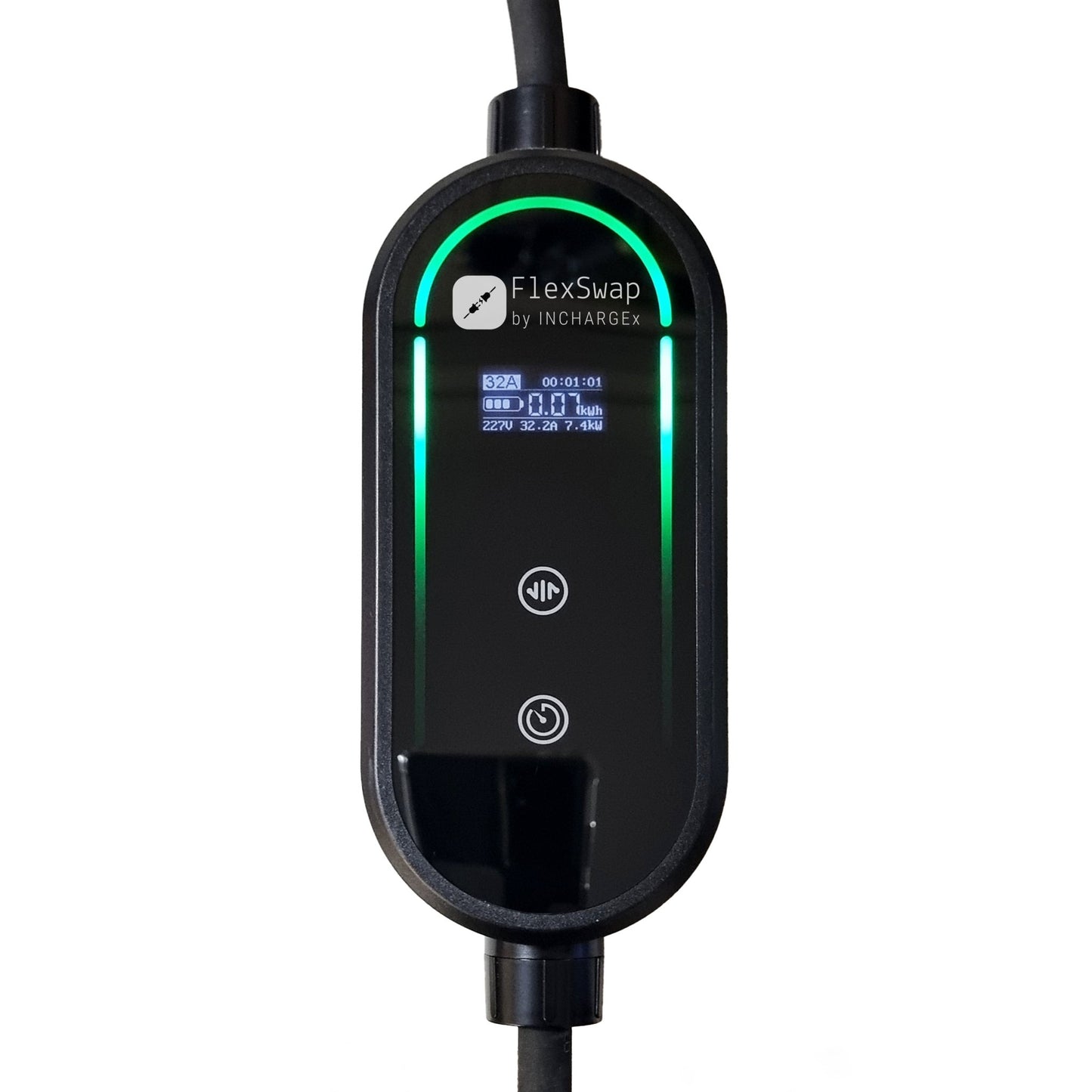

✅ Adjustable Current Control: The charger control box allows for easy adjustment of the current, offering flexibility to suit the specific charging requirements of your EV.
✅ Strong safety features with built-in RCD Type B/TypeA+DC6mA for DC leakage protection, over current, over voltage protection. IP67 Class for control box. All tails are automatic current detected meaning when you plug 10A tail, the max current is 10A; 15A then max current is 15A; 32A then max current 32A (charger will never pull more power than the plug rated current to avoid accidental incorrect setting).
✅ Designed for the Australian Market: This charger is specifically designed to meet the standards and conditions of the Australian market, ensuring optimum performance and compatibility.
✅ Portable and Convenient: Compact and lightweight design, making it perfect for EV owners on the go, whether you're at home, work, or traveling.
✅ All-occasion Suitability: Whether you’re heading on a road trip, parking at your workplace, or charging at home, this portable charger is your versatile companion for every EV charging need.

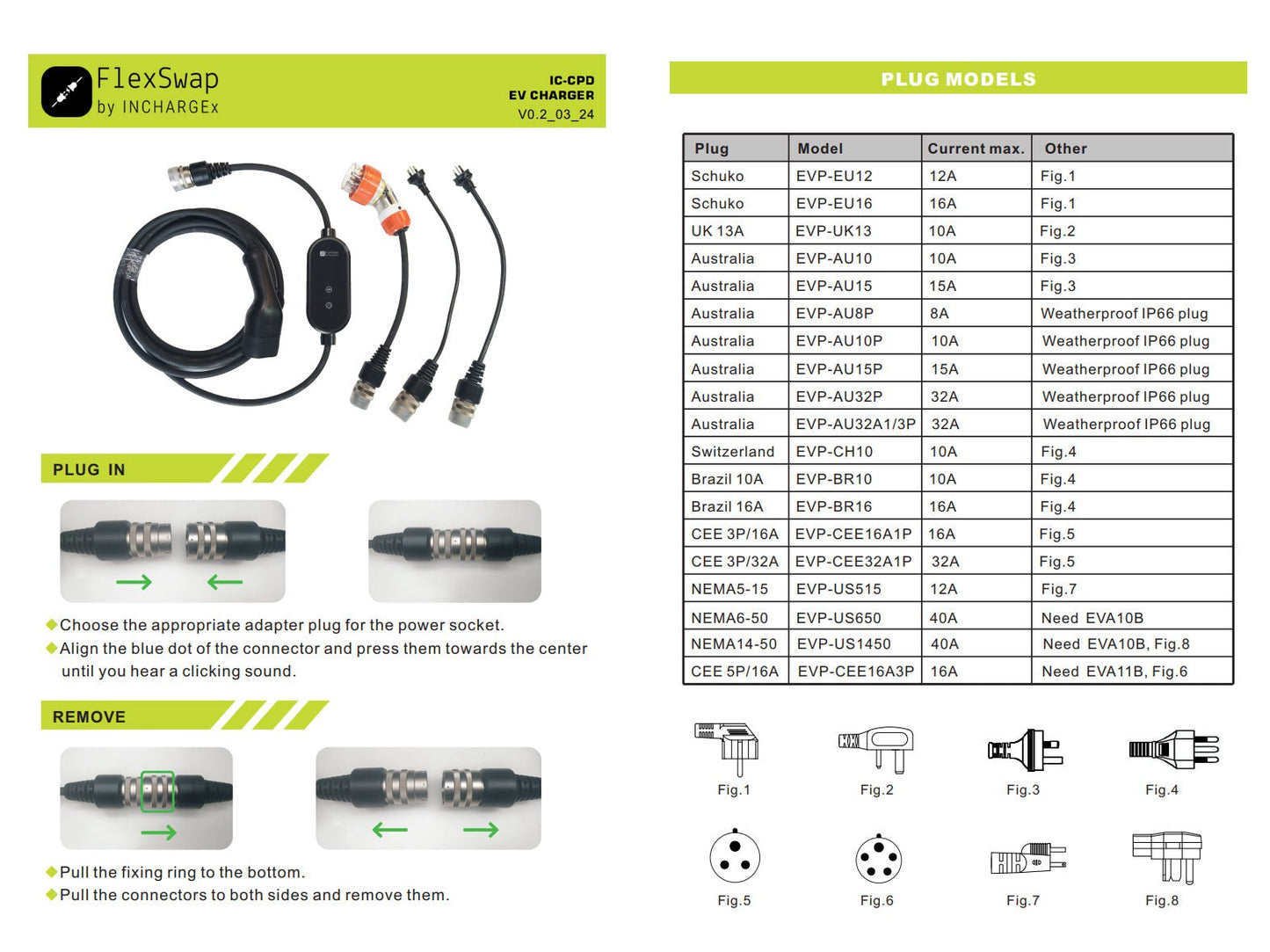

Quick User Guide:

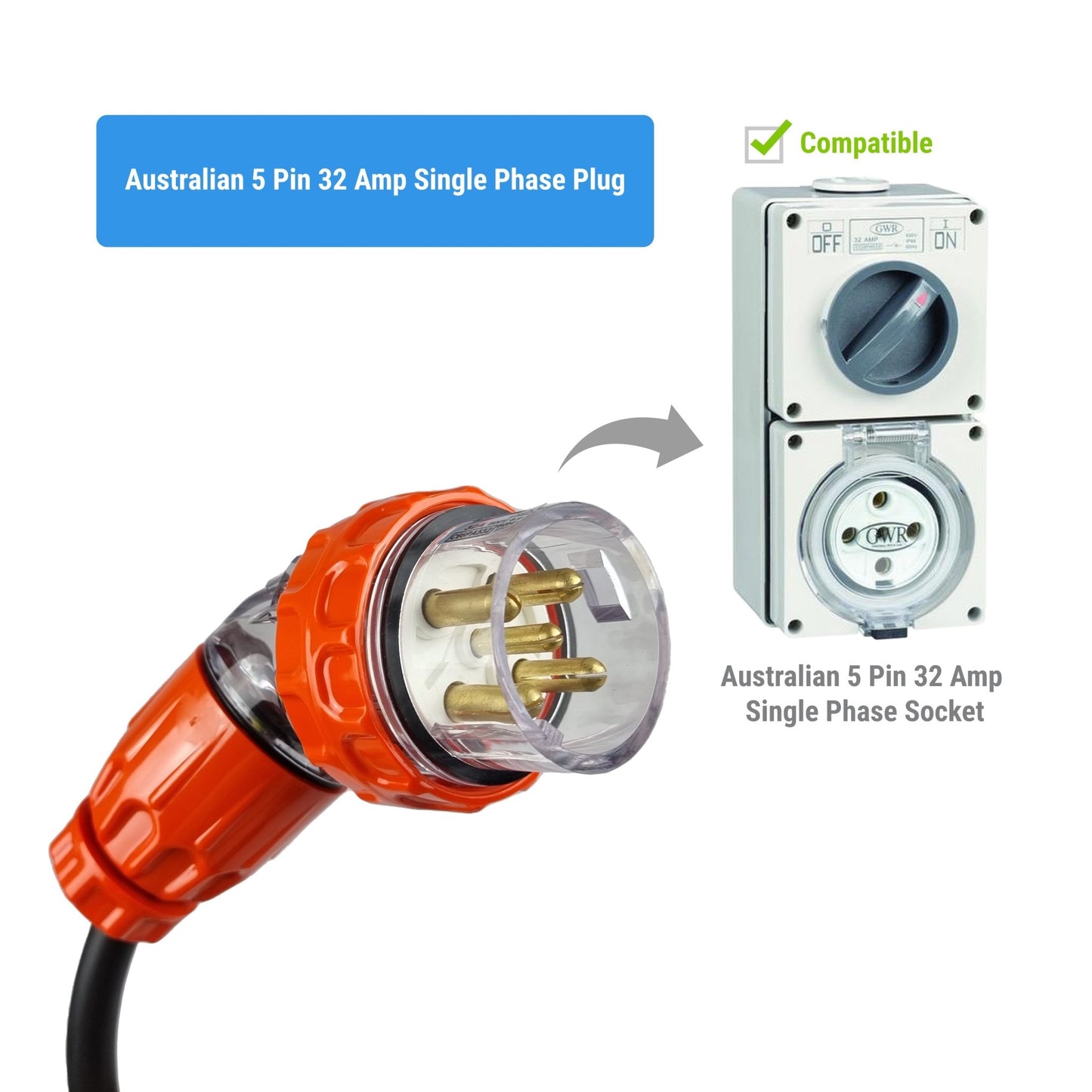

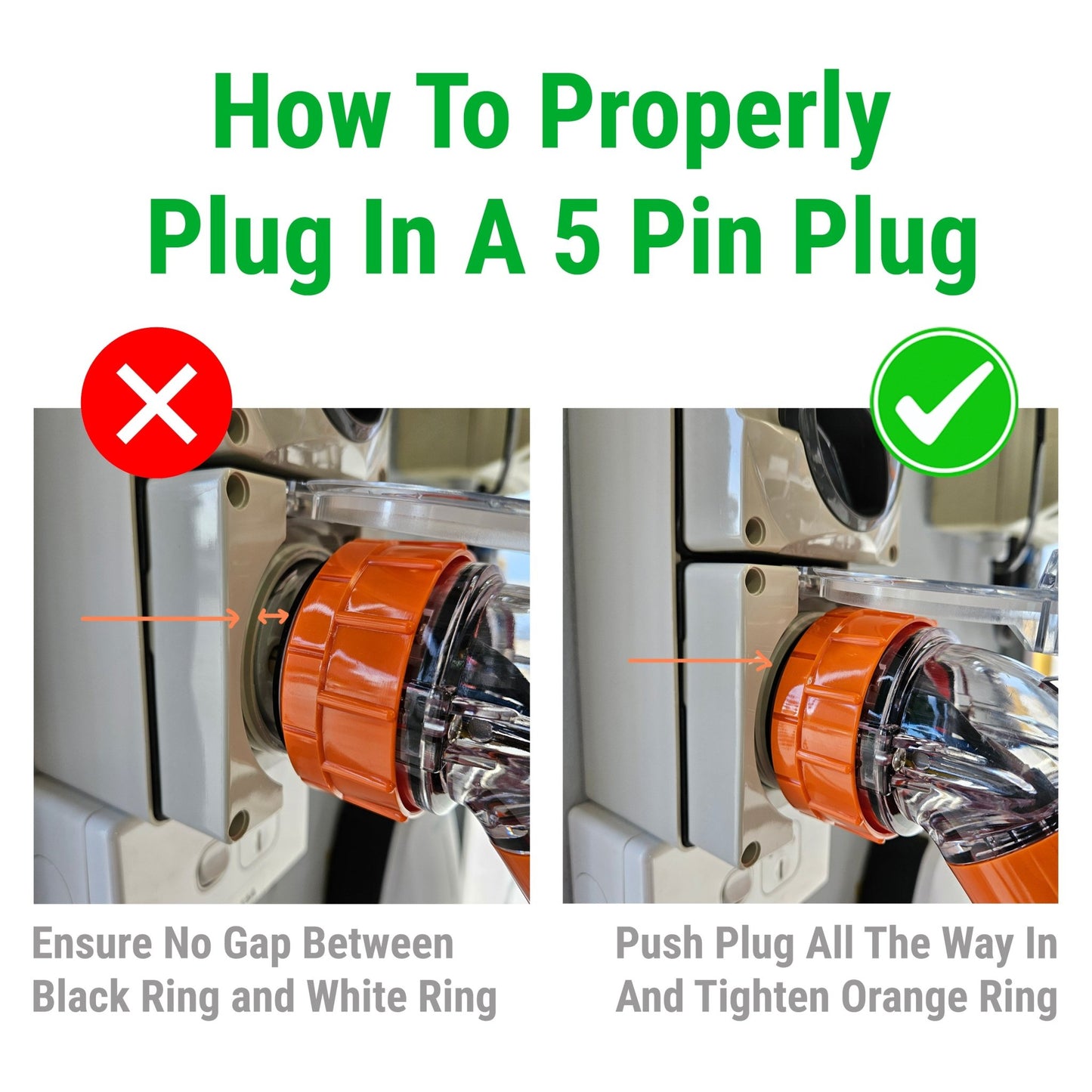

1. The 32A single-phase tail features a 5-pin industrial plug, ensuring compatibility with both single-phase 5-pin and three-phase 5-pin outlets, accommodating different home electrical setups
For homes with single-phase power, a certified electrician can install a 5-pin 32A outlet by connecting the dedicated 32A circuit's three wires to the L1, Neutral, and Earth pins on the outlet, adhering to safety standards.
✅(The installation of a 5-pin 32A outlet as a single phase in a single-phase home is fully compliant with Australian law. We have received official confirmation from Energy Safe Victoria on this matter. If any electricians/customers have doubts about the legality of such an installation, they should promptly consult their respective state energy safe technical support government department for confirmation.)
2. Plug the charger into a power outlet, tap tap the Current button to adjust the current accordingly before plugging into the car and start charging.
(Note that the current is not adjustable while the car is charging, to change current you have to stop charging and unplug from the car first)
3. Tap tap the Delay button to set the delay charging time accordingly.
(If you live in the Melbourne metropolitan area and are looking for a 5-pin socket installation for your EV charging, you can contact K-POW Electrical for a friendly quote. We are not associates; our recommendation is purely for their quality of service and professionalism.)
